Superior Fire Protection Technology
Ace Mastik Coating is a water-based, solvent-free fire retardant coating specifically designed for electrical cables and mechanical penetrant surfaces. This advanced ablative coating undergoes an endothermic reaction during fire events, significantly reducing burning rates and preventing fire spread while maintaining cable performance and durability.
Product Overview
Water-Based Formula
Environmentally friendly, solvent-free coating that ensures safe application and minimal environmental impact.
Ablative Fire Protection
Advanced endothermic reaction technology that actively fights fire spread by absorbing heat energy.
Halogen & Asbestos Free
Completely free from hazardous materials, ensuring safe operation and environmental compliance.
Comprehensive Protection
Ace Mastik Coating provides robust fire protection without compromising the current carrying capacity of electrical cables. Its hardy formulation withstands various exposure conditions commonly encountered in commercial and industrial applications, including aging, moderate impact, temperature variations, weak acids and alkalis, and water logging. The coating maintains its protective properties throughout the service life of the installation.
Key Features & Benefits
No Cable Derating Required
Maintains original current carrying capacity of cables without requiring derating, ensuring optimal electrical performance and system efficiency.
Exceptional Durability
Withstands harsh environmental conditions including temperature fluctuations, mechanical impact, chemical exposure, and moisture.
Easy Application
Simple brush, roller, or spray application methods with excellent adhesion to various substrates and quick drying time.
Versatile Compatibility
Compatible with all cable insulation and jacketing materials, metal and plastic service pipes, air ducts, and mechanical surfaces.
Technical Specifications
Product Performance Data
Comprehensive technical specifications ensuring reliable performance under various conditions:
Application Areas
Electrical Cables
Power cables, control cables, communication cables, and all types of electrical wiring systems.
Mechanical Penetrations
Pipe penetrations, conduit systems, cable trays, and mechanical service penetrations.
HVAC Systems
Air ducts, ventilation systems, and air handling unit penetrations.
Structural Elements
Service pipes, plastic conduits, and mechanical protection systems.
Technical Data Sheet
| Property | Value | Test Method |
|---|---|---|
| Appearance | Paste-like consistency | Visual |
| Color | Light Gray | Visual |
| pH Value | 7.5 - 8.5 | pH Meter |
| Solid Content | 65% ± 2% | ASTM D2369 |
| Density | 1.45 ± 0.05 g/cm³ | ASTM D1475 |
| Fire Performance | Class 1 (ASTM E84) | ASTM E84 |
| Adhesion | Excellent | ASTM D3359 |
Application Process
Surface Preparation
Ensure surfaces are clean, dry, and free from dust, oil, grease, and loose particles. Remove any existing coatings that may affect adhesion.
Mixing & Preparation
Stir the coating thoroughly before use. Do not dilute. Maintain application temperature between 5°C and 40°C for optimal results.
Application
Apply using brush, roller, or spray equipment. Maintain uniform thickness. Multiple thin coats are preferred over single thick coats.
Curing & Inspection
Allow proper drying time - touch dry in 2 hours, full cure in 24 hours. Inspect for complete coverage and uniform application.
Industry Applications
Commercial Buildings
Office complexes, shopping malls, hospitals, and educational institutions requiring reliable fire protection for electrical systems.

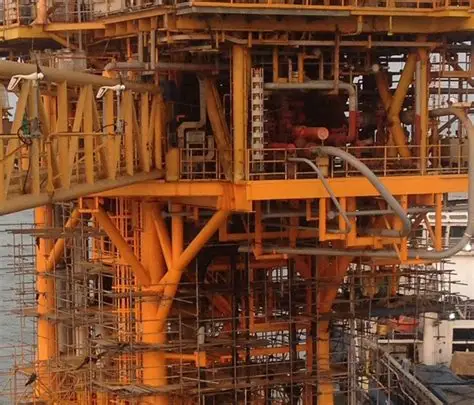

Industrial Facilities
Manufacturing plants, power stations, chemical plants, and industrial complexes with critical electrical infrastructure.
Infrastructure Projects
Airports, railway stations, metro systems, tunnels, and public infrastructure requiring highest fire safety standards.
Data Centers
Critical facilities where cable fire protection is essential for business continuity and data integrity.
Safety & Compliance
Regulatory Compliance
Ace Mastik Coating complies with international fire safety standards and building codes. The product is independently tested and certified for fire performance, environmental safety, and material compatibility. Regular quality control ensures consistent performance and reliability in all applications.
