Advanced Fire Protection Technology
High Velocity and Medium Velocity Water Spray Systems are specialized fire protection systems designed to extinguish fires involving flammable liquids with flash points of 65°C (150°F) or higher. These systems employ three principles of extinguishment - emulsification, cooling, and smothering - to effectively control and extinguish fires within seconds.
System Overview

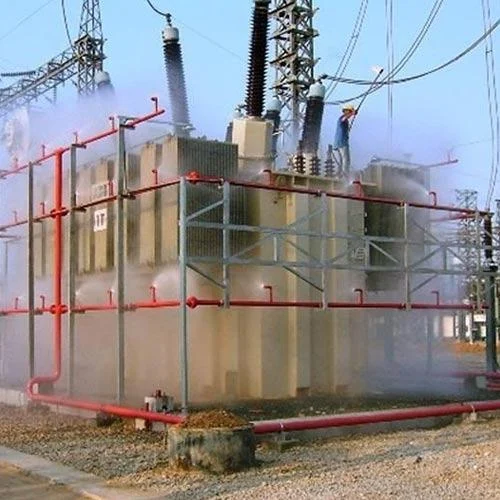

High Velocity System
Designed for high-risk areas with flammable liquids, providing rapid fire suppression through water emulsification.

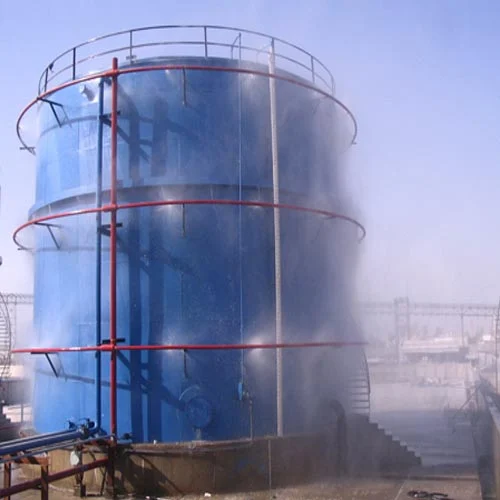

Medium Velocity System
Ideal for general fire protection applications with moderate risk flammable liquids and electrical equipment.
Automatic Detection
Integrated detection systems for automatic activation and rapid response to fire emergencies.
Comprehensive Fire Protection
Water Spray Systems provide robust fire protection for high-risk industrial facilities. The systems are designed to create a dense water curtain that cools the surface, forms an emulsion with burning liquids, and creates a steam blanket that smothers the fire. This multi-pronged approach ensures effective fire control even in challenging industrial environments.
Key Features & Benefits
Rapid Fire Suppression
Extinguishes fires within seconds through simultaneous cooling, emulsification, and smothering actions, minimizing damage and downtime.
High Reliability
Engineered for industrial environments with robust components, redundant systems, and fail-safe operation for maximum reliability.
Automatic Operation
Integrated detection and control systems enable automatic activation, ensuring immediate response to fire emergencies.
Versatile Applications
Suitable for various industrial applications including transformers, oil-filled equipment, flammable liquid storage, and process areas.
Technical Specifications
System Performance Data
Comprehensive technical specifications ensuring reliable performance under various conditions:
System Comparison
| Parameter | High Velocity System | Medium Velocity System |
|---|---|---|
| Operating Pressure | 7-10 bar | 3.5-7 bar |
| Nozzle Type | Projection Nozzles | Spray Nozzles |
| Application | High Flash Point Liquids | Moderate Risk Areas |
| Extinguishing Principle | Emulsification | Cooling & Smothering |
| Coverage Pattern | Concentrated | Wide Area |
| Response Time | < 30 seconds | < 45 seconds |
Application Areas
Transformers & Switchgear
Protection for oil-filled electrical transformers, circuit breakers, and switchgear rooms against fire hazards.
Flammable Liquid Storage
Storage tanks, loading areas, and processing units handling flammable liquids with high flash points.
Process Equipment
Pumps, compressors, reactors, and other process equipment handling hazardous materials.
Industrial Machinery
Large industrial machines, turbines, generators, and other critical equipment requiring fire protection.
Technical Data Sheet
| Component | Specification | Standard |
|---|---|---|
| Piping Material | Galvanized Steel/Stainless Steel | IS 1239 / ASTM A53 |
| Nozzle Material | Brass/Stainless Steel | IS 9523 / NFPA 15 |
| Detection System | Heat/Smoke/Flame Detectors | IS 2189 / NFPA 72 |
| Control Panel | Automatic with Manual Override | IS 5572 / NFPA 70 |
| Water Supply | Dedicated Storage & Pumps | IS 3844 / NFPA 20 |
| System Pressure | As per Design Requirements | NFPA 15 / OISD 116 |
Installation Process
Site Assessment
Comprehensive risk assessment and hazard analysis to determine system requirements, coverage areas, and design parameters.
System Design
Detailed engineering design including hydraulic calculations, nozzle placement, pipe routing, and control system integration.
Installation
Professional installation of piping, nozzles, detection systems, control panels, and water supply infrastructure.
Testing & Commissioning
Comprehensive testing, performance verification, and commissioning to ensure system reliability and compliance.
Industry Applications
Power Generation
Thermal power plants, hydroelectric stations, and renewable energy facilities with critical electrical equipment protection needs.
Oil & Gas
Refineries, petrochemical plants, offshore platforms, and storage terminals with flammable liquid hazards.
Chemical Industry
Chemical processing plants, manufacturing facilities, and storage areas with fire and explosion risks.
Manufacturing
Industrial manufacturing plants, automotive facilities, and processing units requiring reliable fire protection.
Safety & Compliance
Regulatory Compliance
Our Water Spray Systems comply with international fire safety standards including NFPA 15, OISD 116, IS 2189, and other relevant codes. Each system is designed, installed, and tested to meet or exceed regulatory requirements, ensuring optimal protection for your facilities and personnel.
